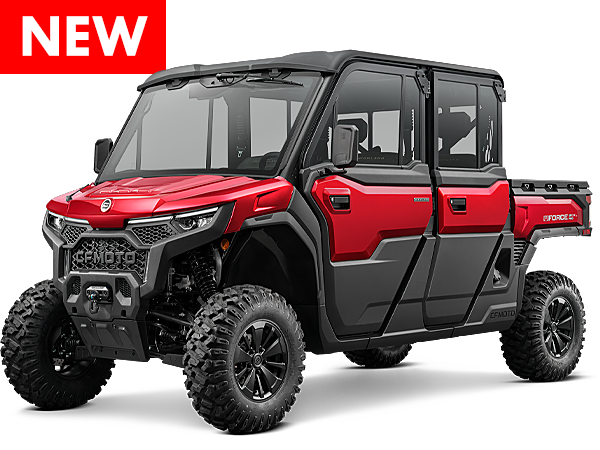

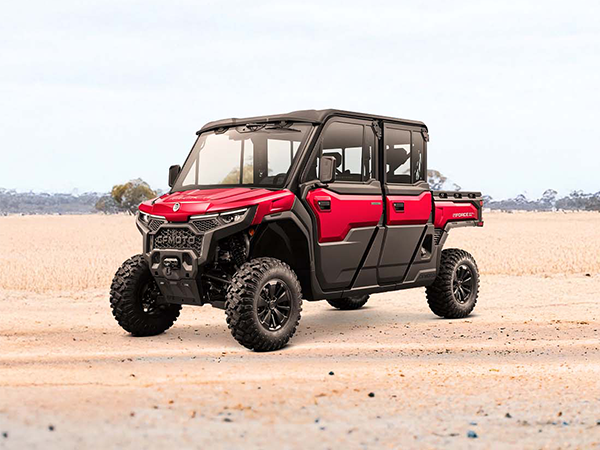

U10 PRO HIGHLAND XL
TAKE THE CREW OUT IN STYLE
$40,990*
EX GST
U10 PRO HIGHLAND XL, loaded with premium features, including a full-cabin for six, HVAC system with heating and air-con for a truly first-class experience.
The U10 PRO series redefines what a top-tier full-size UTV can be, launching a new era for the UFORCE family. More powerful, capable, and advanced than their predecessors, these models feature an all-new technology-appointed and quieter interior, elevated exterior design, and an extensive list of standard features for both work and play.
A Cut Above.
The U10 PRO HIGHLAND XL includes everything that the U10 PRO XL has, PLUS premium HIGHLAND features and room for six. Making it our most value-packed UTV.
*Ride away prices quoted exclude GST. Contact us for more information
ENGINE & TRANSMISSION
| Engine Type: | 3-Cylinder with Variable Valve Timing (VVT) |
| Discplacement: | 998cc |
| Maximum Power: | 90hp at 7,000rpm |
| Maximum Torque: | 94.5Nm at 6,500rpm |
| Fuel System: | Bosch EFI with two power modes NORMAL or WORK |
| Transmission: | CFMOTO CVT |
| Drive: | E-SHIFT push button auto with H-L-N-R-Park |
| Handbrake: | Electric with AUTOHOLD fuction |
| 4WD: | 2WD/4WD |
| Differential: | Both locking front and rear differential (Turf mode) |
| Downhill Assist: | Electronic assist hill descent control (DAC) |
| Steering: | Progressive power steering (EPS) |
CHASSIS
| Suspension: Front: | Dual A-arm, swaybar with 280mm of travel |
| Suspension: Rear: | Dual A-arm, swaybar with 260mm of travel |
| Shock Absorber: | Shock absorbers with compression/rebound adjustment |
| Brakes: | All four hydraulic disc brakes |
| Wheels: | 14 inch alloy rims |
| Tyres: | 29-inch AT tyres |
SIZE
| Dimensions (L/W/H): | 3750 x 1645 x 1945mm |
| Cargo Tray (D/W/H): | 865 x 1340 x 290mm |
| Wheelbase: | 2860mm |
| Ground Clearance: | 330mm |
| Weight (Wet): | 1,125kg |
LOAD
| Towing Capacity: | 1134kg |
| Cargo Tray Capacity: | 454kg |
| Fuel Capacity: | 45 L |
| Person: | 6 |
OTHER
| Colour: | Bordeaux Red |
| Winch: | 4500lb with nylon rope |
| Warranty: | 2 Year Warranty |
PREMIUM HIGHLAND
| HIGHLAND fully enclosed cabin: |
| Room for six: |
| Electric tilt-up glass windshield: |
| Wiper/washer system: |
| Rear glass windshield with ‘trucker’ slider window: |
| Heating & air conditioning (HVAC system): |
| Premium headlining and audio system: |
| Premium HIGHLAND embroidery and badging: |
